Yazaki - Gas Fired Double-Effect Chiller-Heaters


Gas Fired Double-Effect Chiller-Heaters

CH-K Series: 30, 40, 50, 60, 80, 100 RT Cooling with Standard Heating Capacities


Dimensions (CH-K80 & CH-K100)

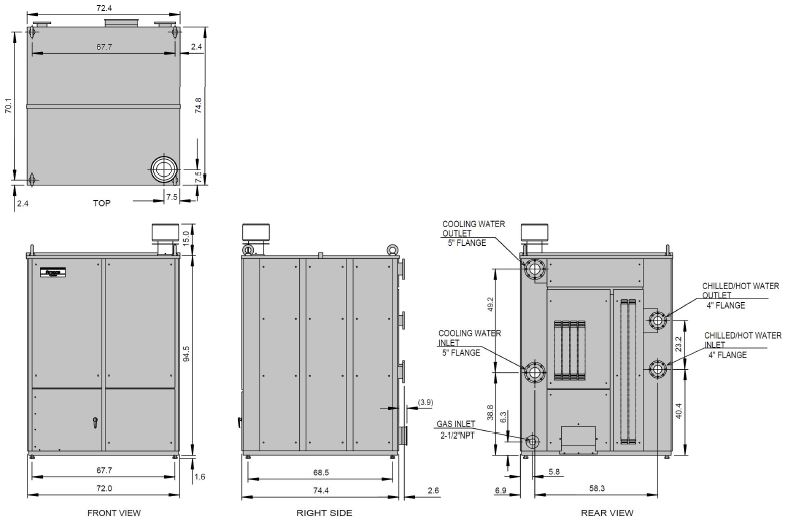

All View

Gas Fired Double-Effect Chiller-Heaters CH-K80/CH-K100 all views

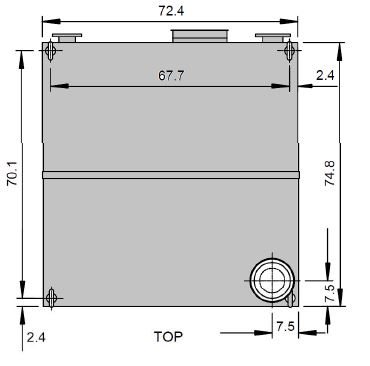

Top View

Gas Fired Double-Effect Chiller-Heaters CH-K80/CH-K100 top view

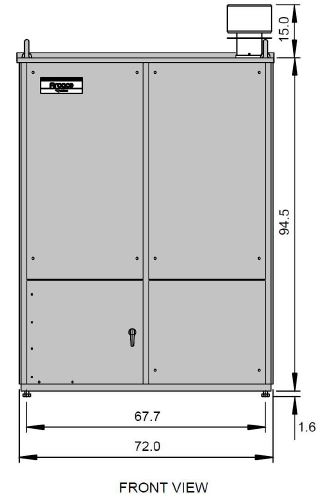

Front View

Gas Fired Double-Effect Chiller-Heaters CH-K80/CH-K100 front view

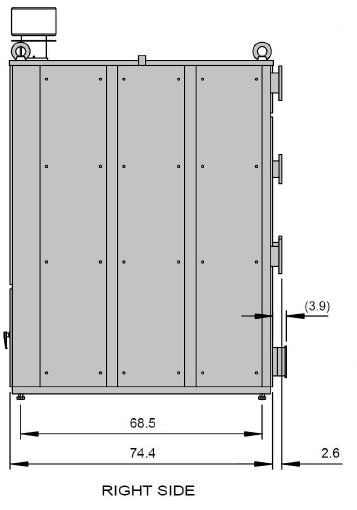

Right Side View

Gas Fired Double-Effect Chiller-Heaters CH-K80/CH-K100 right side view

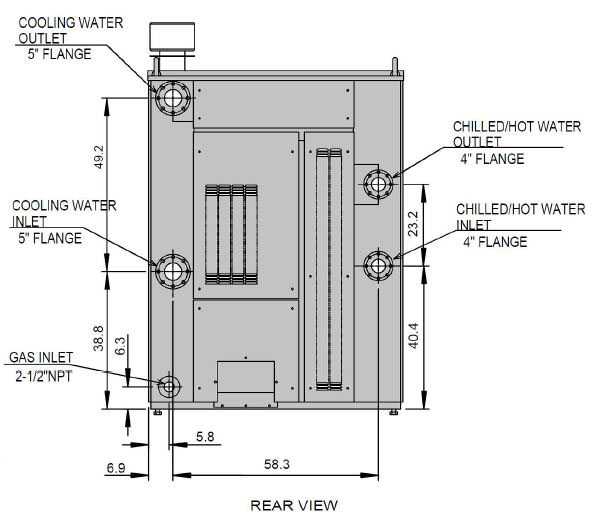

Rear View

Gas Fired Double-Effect Chiller-Heaters CH-K80/CH-K100 rear view



NOTE: All Dimensions In Inches
