Yazaki - Gas Fired Double-Effect Chiller-Heaters


Gas Fired Double-Effect Chiller-Heaters

CH-K Series: 30, 40, 50, 60, 80, 100 RT Cooling with Standard Heating Capacities


Dimensions (CH-K50 & CH-K60)

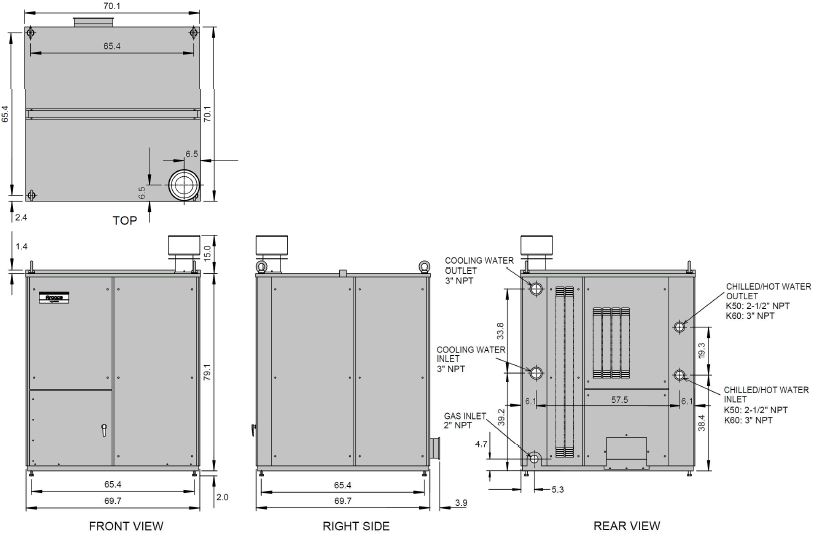

All View

Gas Fired Double-Effect Chiller-Heaters CH-K50/CH-K60 all views

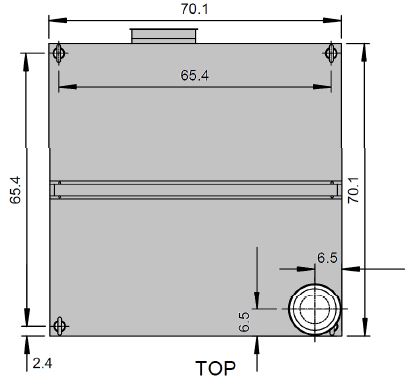

Top View

Gas Fired Double-Effect Chiller-Heaters CH-K50/CH-K60 top view

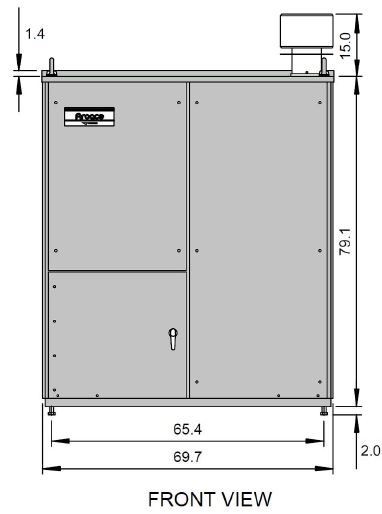

Front View

Gas Fired Double-Effect Chiller-Heaters CH-K50/CH-K60 front view

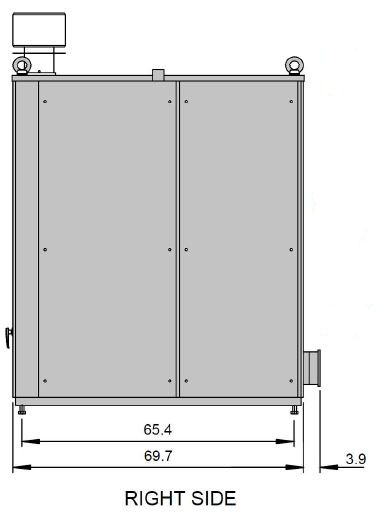

Right Side View

Gas Fired Double-Effect Chiller-Heaters CH-K50/CH-K60 right side view

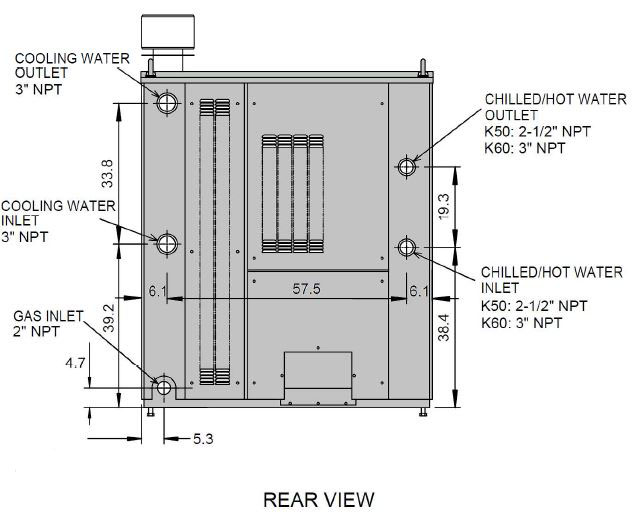

Rear View

Gas Fired Double-Effect Chiller-Heaters CH-K50/CH-K60 rear view



NOTE: All Dimensions In Inches
