Water Fired Single-Effect Chillers and Chiller-Heaters
WFC-SC5 Dimensions

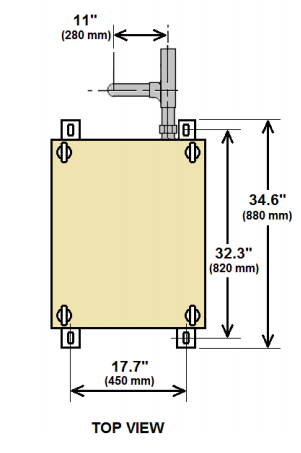

Top View

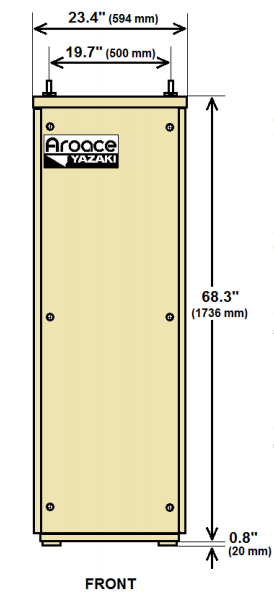

Front View

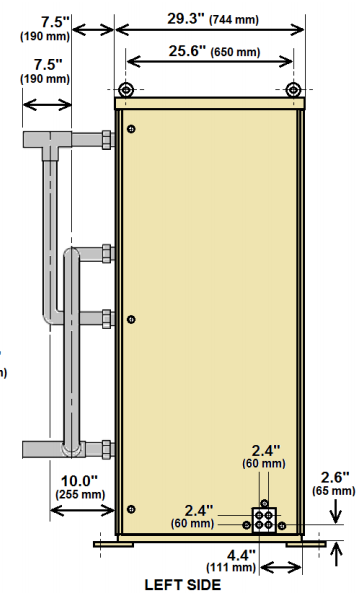

Left Side View
Rear View
NOTE: All Dimensions In Inches
