Yazaki - Gas Fired Double-Effect Chiller-Heaters


Gas Fired Double-Effect Chiller-Heaters

CH-MG Series: 150 and 200 RT Cooling Capacities


Part Load Heating Performance




During part load operation, the heating efficiency of the chiller-heater increases. As the firing rate is reduced, the burner modulates both fuel and air; and the ratio of heat exchanger surface area to fuel input increases.

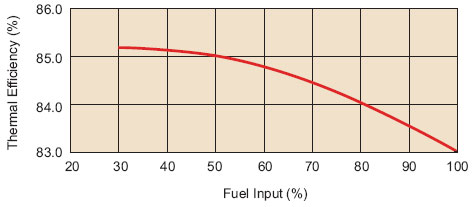

Gas Fired Double-Effect Chiller-Heaters CH-MG Series Part Load Heating Performance

Notes:
  1. Fuel Input (%) is gas consumption as percentage of full load rated fuel input.
